SPECIFICATIONS
Brand Name: BAOFENG
Battery Capacity(mAh): 2800
Origin: Mainland China
Waterproof / Water-Resistant: No
Maximum Range: 5km-10km
Model Number: UV-25
Is_Display: Yes
Walkie Talkie Type: Portable
Output Power(w): 5w-10w
Material: Plastic
Storage Channel: 999
Frequency Range: Multi-Band
Dimensions: 180mm*65mm*40mm(Antenna Not included)
Baofeng 10KM Walkie Talkie UV-25 10W 999Ch Multi-band Amateur FM Radio with Frequency Copy NoAA Weather Forecast 2800mAh USB-C Battery and Headset
Features:
-Frequency Range: Three bands Transmission and Five Bands Receive
FM: 65-108(Rx)
VHF1: 136-174MHz (Tx&Rx)
VHF2:220-260MHz (Tx&Rx)
UHF1:400-480MHz(Tx&Rx)
UHF2:480-520MHz(Rx)
-Three Power Levels Select-able ,High =10W,Medium=5W, Low=3W
-Up to 999 Memory Channels
-1.77”TFT Large Screen, full keyboard,Fully open menu operation
-2800mAh High Capacity Li-ion Rechargeable Battery Pack
-One Key Search Frequency, easy pairing and grouping (copying channel configuration parameters)
-Frequency hopping to keep your call privacy confidential
-Channel Scan,Frequency Scan and three scan and recovery methods: TO,CO and SE
-Power-on Password management function
-DTMF encoder and DTMF manual dial
-1000/1450/1750/2100Hz Repeater Tone
-Vox(Voice activated transmit)
-Alarm function
-Programmable repeater offset
-Transmission time-out Timer
-Ten levels of squelch adjustment
-End of transmission tone,aka “roger beep”
-Support NoAA weather reception function in the united states and Canada
-Broadcast FM radio receiver 65-108MHz
-Dual Watch/Dual reception/Dual-band handheld transceiver
-Stopwatch function
-Battery charged by usb Type-C directly
Technical Specifications:
|
General |
|
|
Channel Capacity |
999 |
|
Channel Spacing |
25.0KHz/12.5KHz |
|
Input Voltage |
7.4VDC |
|
Current Drain: Standby Receive Transmit |
45mA 380mA ≤1.6A(High power),≤1.4A (Medium power) ≤1.2A (Low power) |
|
Operating Temperature |
-10°cto 60°c |
|
Antenna Impedance |
50 ohm |
|
Radio Dimensions |
180mm*65mm*40mm(Antenna Not included) |
|
Radio weight |
650g (with Li-ON battery) |
|
Transmitter |
|
|
Frequency Range (TX) |
136-174MHz & 220-260MHz &400-480MHz |
|
RF Output Power |
10Watt(High)/5Watt(Medium)/3Watt(Low) |
|
Modulation |
16K ΦF3E/11K ΦF3E |
|
Spurious Emission |
-16dBm< 1GHz, -16dBm> 1GHz |
|
Frequency Stability |
±2.5ppm |
|
Audio Distortion |
≤5% |
|
FM Hum & Noise |
40dB |
|
Receiver |
|
|
Frequency Range |
FM:65-108MHz VHF1: 136-174MHz VHF2 :200-260MHz UHF:400-520MHz |
|
Sensitivity:12dB SINAD |
-120dBM |
|
Adjacent Channel Selectivity |
-60dBm |
|
Intermodulation and rejection |
-70dBm |
|
Rated Audio Power Output |
0.75Wats 16ohm |
|
Rated Audio Distortion |
≤5% |
Note: All Specifications may be modified without prior notice or liability. Thank you!

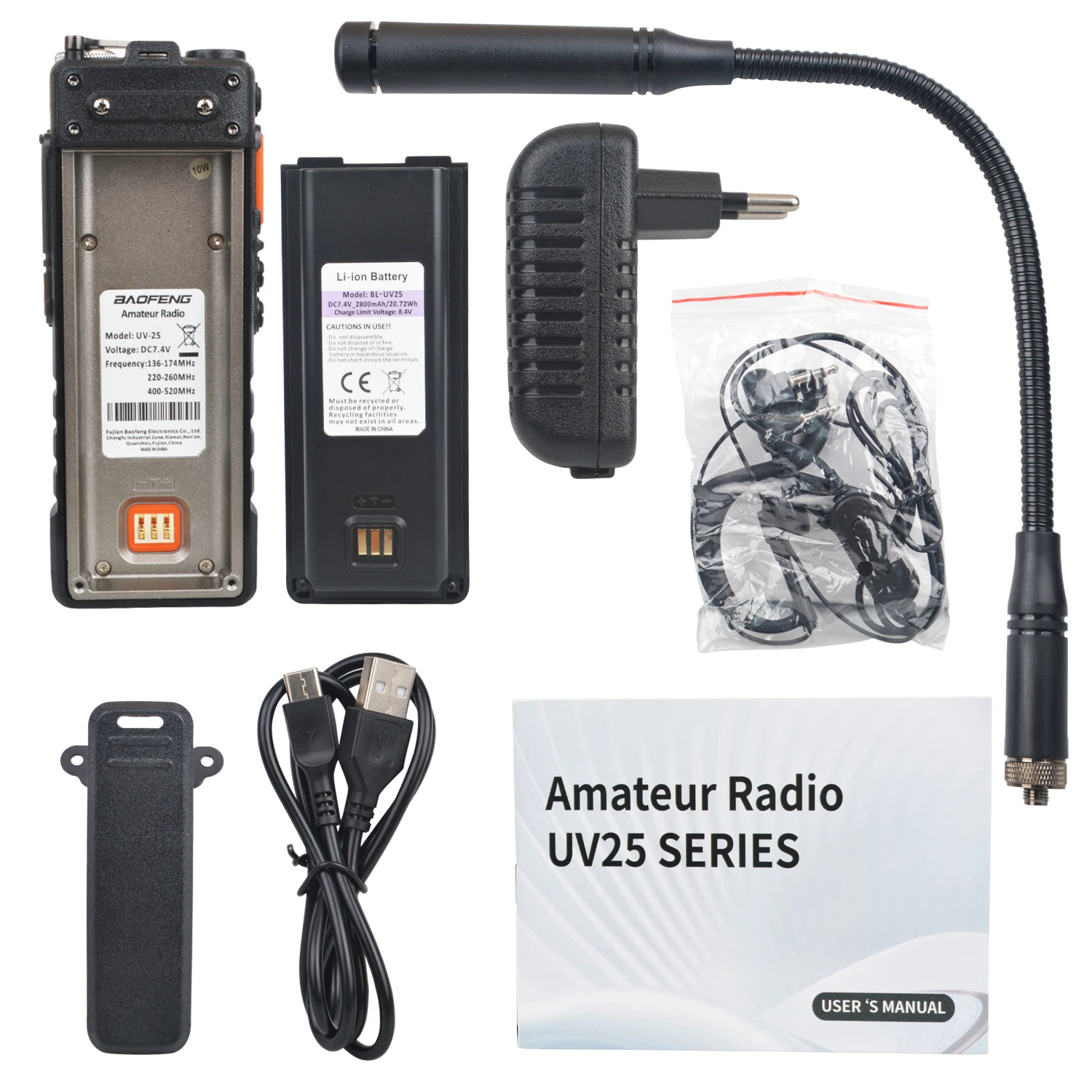

Package Contains:
1× UV-25D Radio Body
1× 7.4V 2800mah Li-ion Battery Pack
1× SMA-Female Flexible Dual Band Antenna
1× AC Adapter
1× USB Type-C Charging Cable
1× Belt Clip
1× Earphone
1× Handstrap
1× ENG Manual
