Description

SPECIFICATIONS



Brand Name: RETEVIS



Battery Capacity(mAh): 2800

Origin: Mainland China

Waterproof / Water-Resistant: IP67

Maximum Range: 1.5km-3km

Model Number: HA1G

Display: Yes

Walkie Talkie Type: Portable

Output Power(w): 3w-5w

Storage Channel: 30 GMRS channels,250 Channels in total

Frequency Range: GMRS

Frequency Range: Transmitting : GMRS

Frequency Range: Receiving: 136-174 MHz/400-480 MHz ,Receive Only

Function: Programmable Second PTT

NOAA weather Channels / Alert: YES

FM Radio: YES

Charger: USB C Charging





Retevis Ailunce HA1G GMRS Walkie Talkie IP67 Waterproof Two Way Radio Station USB C 5W UHF VHF Receiving Portable Transceiver HT

Highlights:

● Professional GMRS Handheld Radio: 30 default GMRS channels, support PC programming easily to add new channels and keypad change the settings, 250 channels in total.

● Dual-Band Receiver: Allows to receive and scan on UHF & VHF channels in either VFO mode.

● IP67 High-level waterproof performance escorts your calls under harsh conditions;

● USB-C Rechargeable: the battery and desk charger comes with USB Type-C charging port, you can charge the radio or only battery.

● Programmable Second PTT: Program the side key to the second PTT.

Function:

● 30 GMRS Channels

● Up to 250 Custom Channels

● 136-174 MHz/400-480 MHz Receive Only

● NOAA weather Channels

● NOAA weather alerts

● FM Radio

● Standard CTCSS/DCS Tones

● Support Splitting CTCSS/DCS Tone

● Selectable High/Low TX Power

● Channel Scan/Priority Scan

● Selectable Wide/Narrow Bandwidth

● 1.77 Color Backlight LCD Dual Display

● Channel Name, Number or Frequency Display

● Backlight Keypad

● Busy Channel Lockout

● Low Battery Alert

● 2 Programmable Function Keys

● IP67 Waterproof

● 2800mAh

●Type-C Charging battery

Technical Description:

Transmitter	Adjacent Channel Power：	Wide band：≤-65dBc ； Narrowband：≤-62dBc
	CTCSS/CDCSS Modulation	Wide band：0.75KHz±0.1KHz ；Narrowband：0.4KHz±0.1KHz
	Audio Distortion	≤5%
	Modulation Sensitivity	8-12mV
	Maximum Frequency Deviation	Wide band：≤5KHz ； Narrowband：≤2.5KHz
	Spurious Power	≤-20dBm；
	Modulation Mode	Wide band：16KφF3E ； Narrowband：11KφF3E
	Transmit Current	≤1.70A
	Pre-emphasis Character	6dB/every time the frequency will increase
Receiver	Sensitivity	Wide band：-123dBm； Narrowband：-124dBm
	Voice Output Power	≥500mW
	Audio Distortion	≤5%
	Obstruct	≥85dB
	Inter modulation	Wide band：≥65dBc ； Narrowband：≥60dBc
	Adjacent Channel Selection：	Wide band：≥65dBc ； Narrowband：≥60dBc
	Spurious Power	RX≤-57dBm
	Spurious Rejection	≥65dBc
	Receiving Current	≤400mA

Retevis Ailunce HA1G Professional IP67 Waterproof GMRS Radio

Retevis Aliunce HA1G GMRS waterproof ham radio is available for using normally in severe weather. Type-C charging and 2800mAh large battery support using for a long time. Dual band receiving and sub PTT setting enable you to transmit and receive on two channels.

IP67 Waterproof

IP67 waterproof ham radio can be used normally in wet and dust environments. It supports submerging in 1 meter deep of water for 30 minutes and you won’t worry about falling into the water.

USB Type-C Charging

Comes with a standard type-C charging port and a USB charging port, it is convenient for you to use a power bank or a vehicle to recharge your walkie talkie directly and recharge the battery.

2800mAh Rechargeable Battery

Built-with a 2800mAh large battery, ham radio effectively supports all-day outdoor activities without frequent charging, using more conveniently.

1.77 Inch Colorful Screen

HA1G walkie talkie features one 1.77 inch colorful screen, which provides convenience for checking the current working channel and battery condition during outdoor activities.

Dual Band Reception

Support U/V full-band receiving, ham radio effectively receive on two channels at the same time and you won’t miss important information.

Programmable Second PTT

Program the side key to the second PTT. Instead of switching the main and sub frequency to transmit, sub PTT key facilitates convenience for transmitting the main and sub frequencies without complex settings.

250 Channels

HA1G GMRS radio includes 30 default GMRS channels and 220 programmable channels, which enables you to program multiple repeater channels for easy use and the extended range.

NOAA Weather Alert

12 NOAA weather channels offer the latest weather information to you, and you can adjust your outdoor plan in time according to the actual situations.

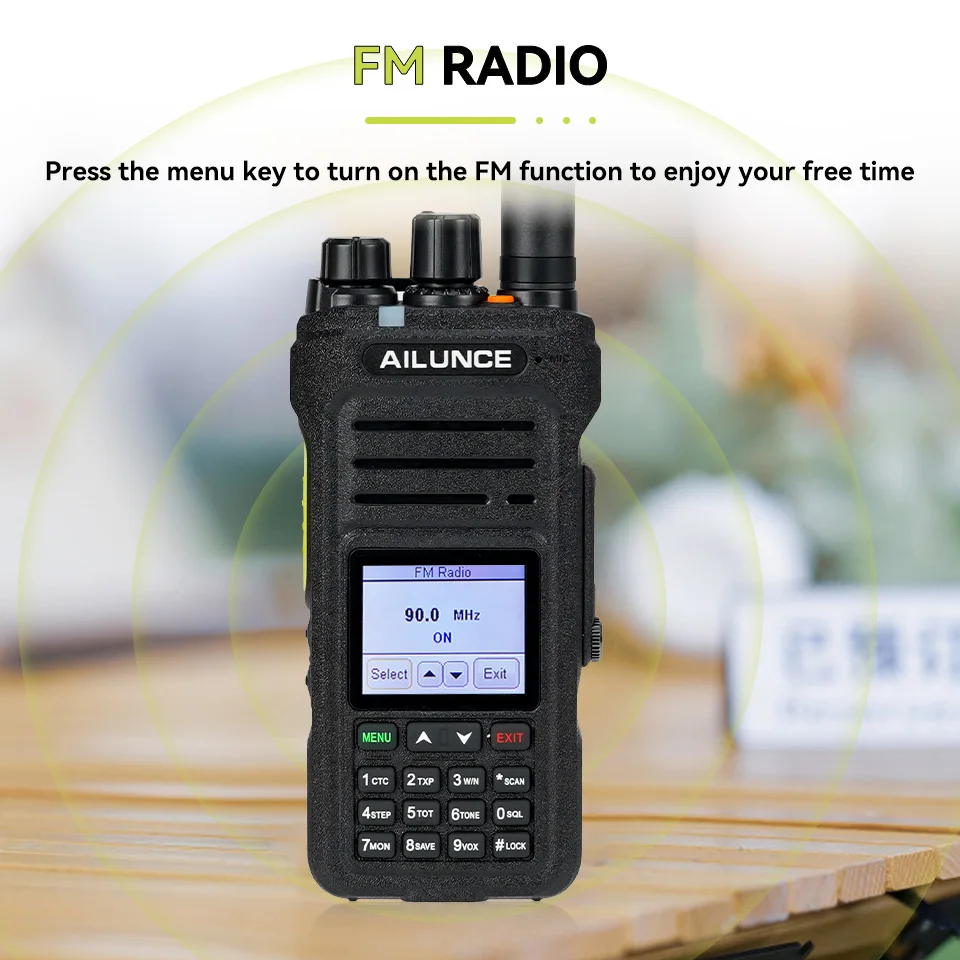

FM Radio

HA1G is featured with FM radio, which offers various entertainments to make you relaxed in your free time, such as music, novel, etc. Long press the UP or DOWN key to scan FM frequencies to choose the channel you want.

Key Lock Function

Keypad lock includes auto and manual lock mode and is flexible to lock keypads, channel knob or side keys, or all of them, making it convenient to use the walkie talkie.

VFO Mode

VFO mode enables you to input or edit the frequencies, CTCSS/DCS, specifications manually rather than using the computer, using more conveniently.

CTCSS/DCS Codes

HA1G walkie talkie features standard and non-standard CTCSS/DCS codes, which makes it convenient to communicate securely.

Emergency Alarm

Alarm mode included emergency alarm, emergency call and alarm call. Various alarm mode makes sure your security during outdoor activities.

Familiar with HA1G Walkie Talkie

Technical Specifications:

Widely Applied in Many Types of Activities :

Package Includes:

1x HA1G Walkie Talkie

1x 2800mAh Battery

1x Antenna

1x Belt Clip

1x Sling

1x USB-C Charging cable

1x Desk Charger

1x User Manual

Optional Accessories:

1x Programming Cable

1x Waterproof Speaker Microphone

*If you need,please purchase the option including these optional accessories.
