Infared Thermal Imaging Night Vision Hunting Binoculars Camera Build-in Laser Rangefinder GPS WIFI Hotspot Tracking Crosshair

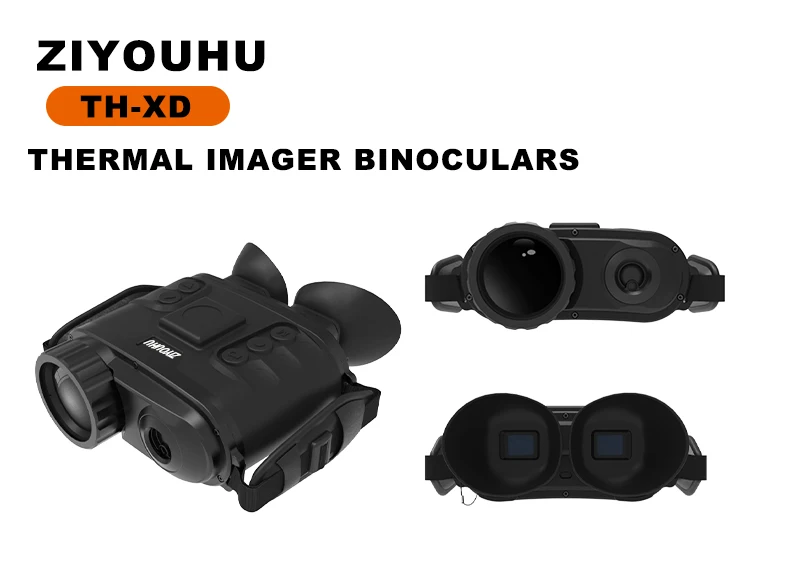

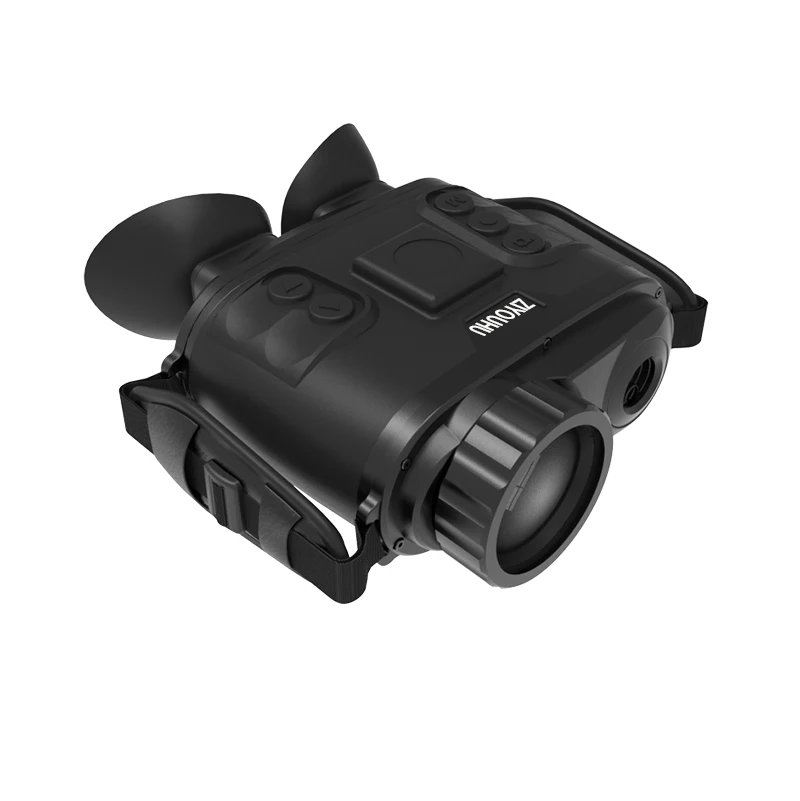

ZIYOUHU TH-XD 50/75 THERMAL IMAGING

ZIYOUHU TH-XD 50/75 series handheld thermal imaging binocular fusion imaging night vision instrument, by far infrared thermal imaging system infrared detector (resolution: 640×512@25fps), equipped with ultra-low illuminance visible light detector (resolution: 1920×1080@25fps), high resolution OLED imaging system and high precision electronic compass, equipped with dual light fusion and target highlighting functions to quickly find hidden targets in severe weather such as smoke, fog, rain and snow. The product is highly integrated, small in size, light in weight and low in power consumption. Long standby time is mobile handheld mist and night vision monitoring cost-effective products.

The series of equipment can effectively solve the 24-hour all-weather mobile imaging demand day and night, can switch display function; Moreover, it has excellent imaging and fog penetration capability. On the basis of meeting the requirements of long-distance target detection, it integrates target details to improve target identification and combines video and photo functions to record and restore the scene. It has been successfully used in forest fire fighting, search and rescue, military frontier defense, maritime water conservancy, waterway, nature reserve, public security armed police, airport, cultural relic protection, energy mines and other security areas such as single soldier, single police, single patrol.

Features:

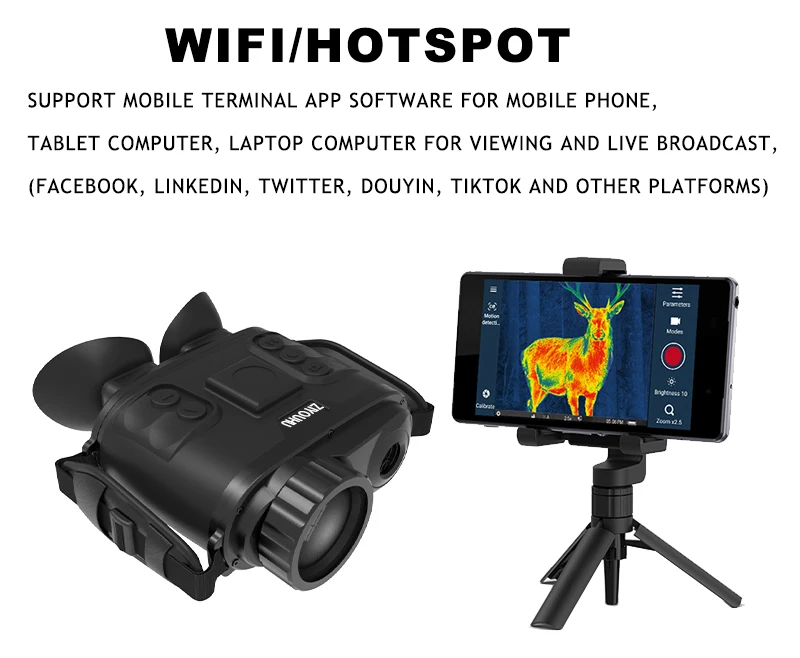

1, Compact structure, built-in laser rangefinder, WIFI, hot spot, azimuth, roll Angle, and other groups of sensors.
2, Boot time is less than 5s, super long standby up to 10 hours, stable and reliable performance, can work day and night without difference, strong anti-fall and earthquake resistance, suitable for harsh monitoring environment.
3, Can be one button to take photos and video, easy to capture monitoring details;  64 GB (up to 256 GB), facilitating information storage, transmission, and evidence collection.
4, The product adopts no block design, combined with laser ranging with unique digital enhancement algorithm and automatic image stretching algorithm to achieve the best fusion image output,
5, 1024×768 ultra high contrast OLED eyepiece system, making the system imaging clearer;  50Hz real-time imaging, fast moving without drag.  The detection range is longer and the range is wider. White heat/black heat/brown/iron red/rainbow color options, brightness and gain can be adjusted (easier to find the target in extremely harsh environment).
6. The infrared lens adopts aspheric technology to improve the optical performance while reducing the weight and optical length of the lens. At the same time, the unique center calibration method is adopted to ensure that the optics can image clearly at different distances and temperatures for different targets

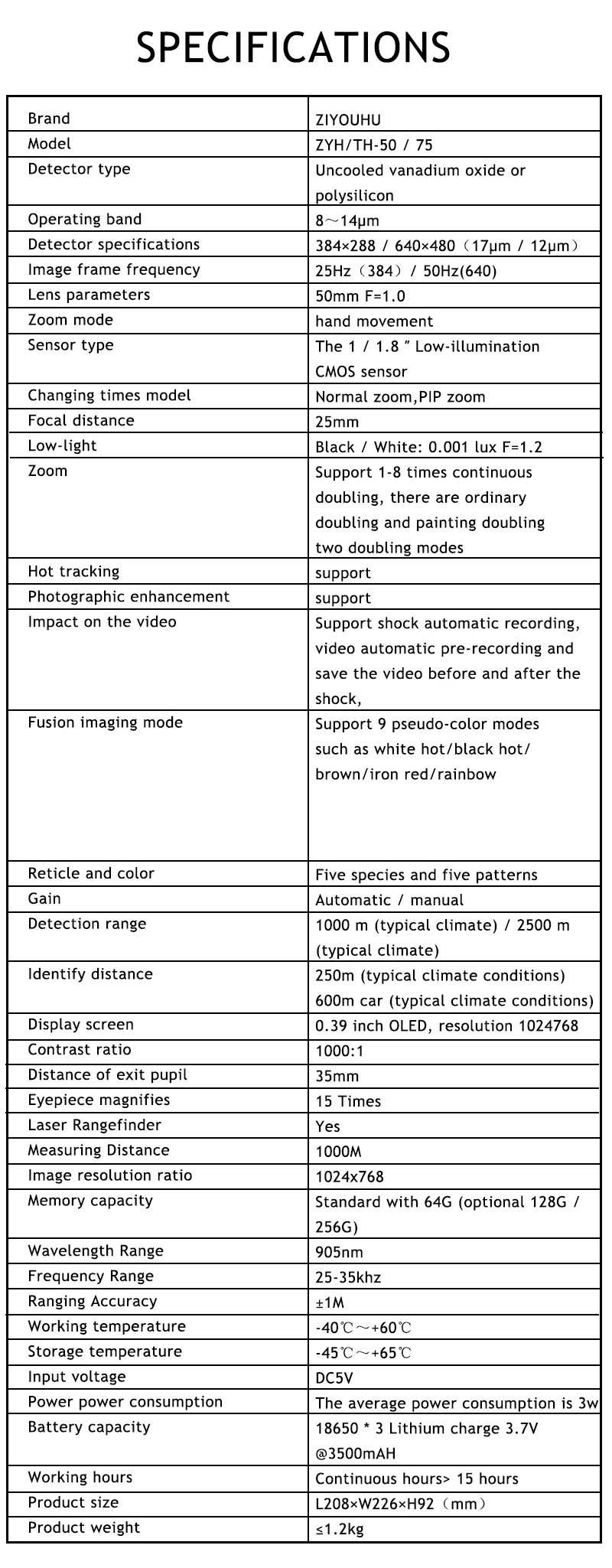

Specifications:

▶ Thermal parameters

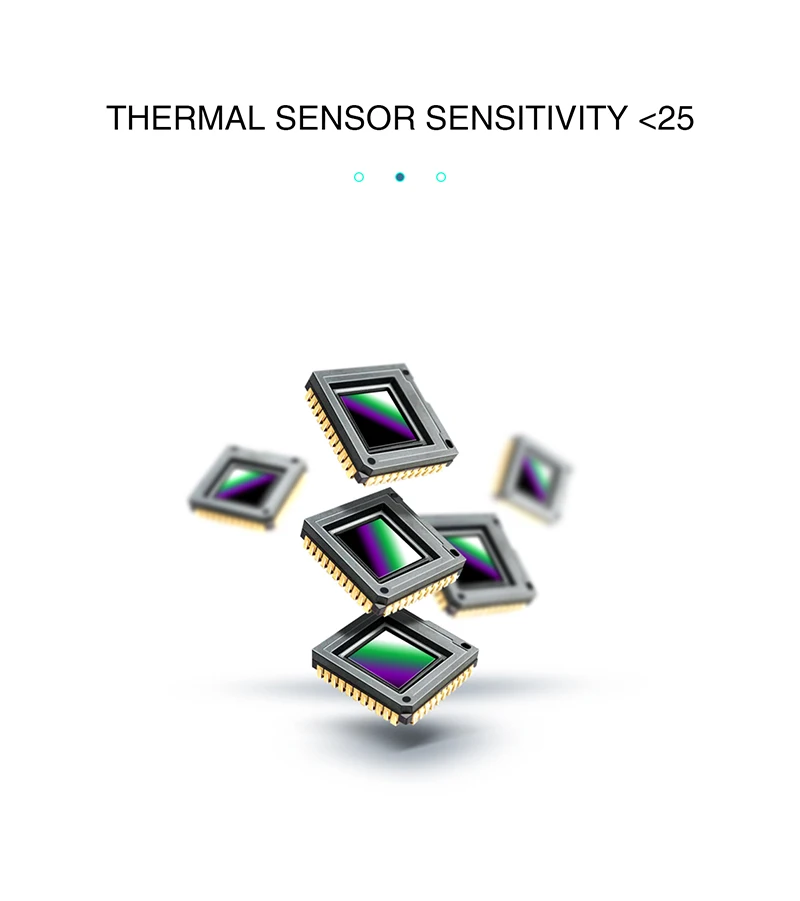

Detector type：uncooled vanadium oxide or polysilicon
Working band：8 ~ 14μm
Detector specifications：384× 288(17μm)
Image frame frequency：25Hz (384) / 50Hz(640)
Lens parameter：50mm F=1.0

▶ Fusion parameters of visible and thermal images
Sensor type：1/1.8 “low illumination CMOS sensor
Visible light resolution：1920×1080
Focal length：25 mm
Low illumination black/White：0.001 LUX F=1.2

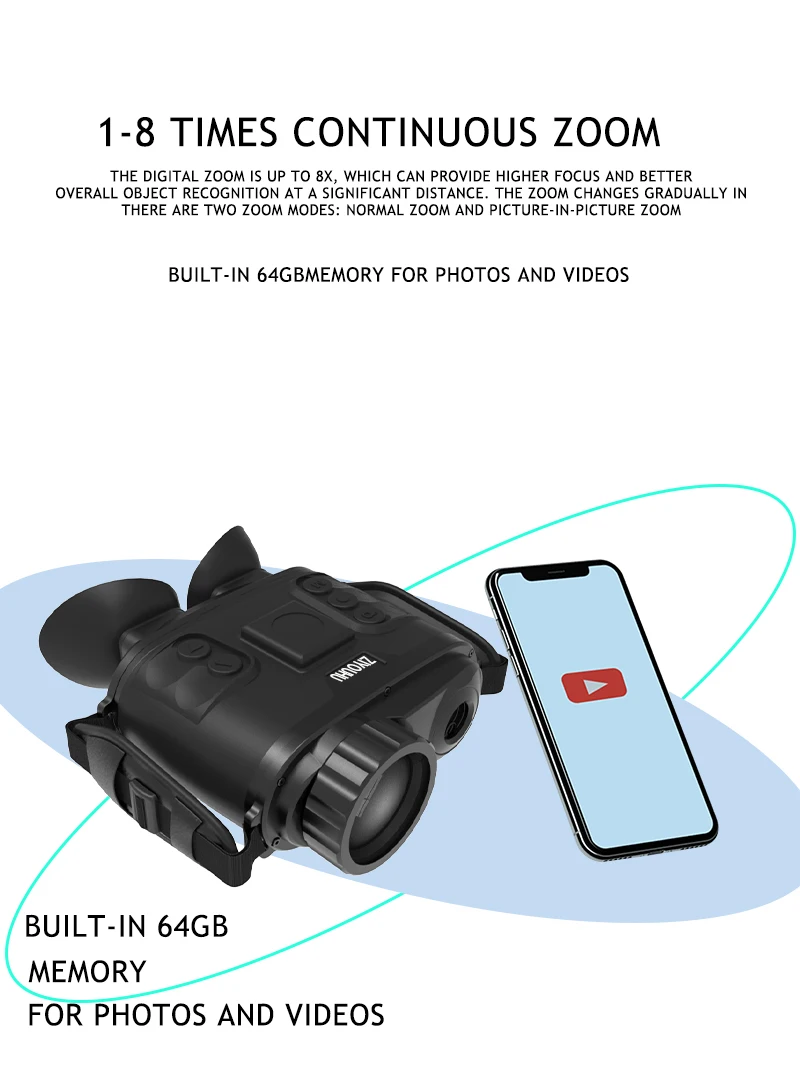

Doubling：support 1-8 times continuous doubling, there are ordinary doubling and picture in picture doubling two kinds of doubling mode
Hotspot Tracking：support
Image enhancement：support
Image mode：Visible light thermal image fusion mode/thermal image mode/low light mode/color imaging mode and picture in picture display

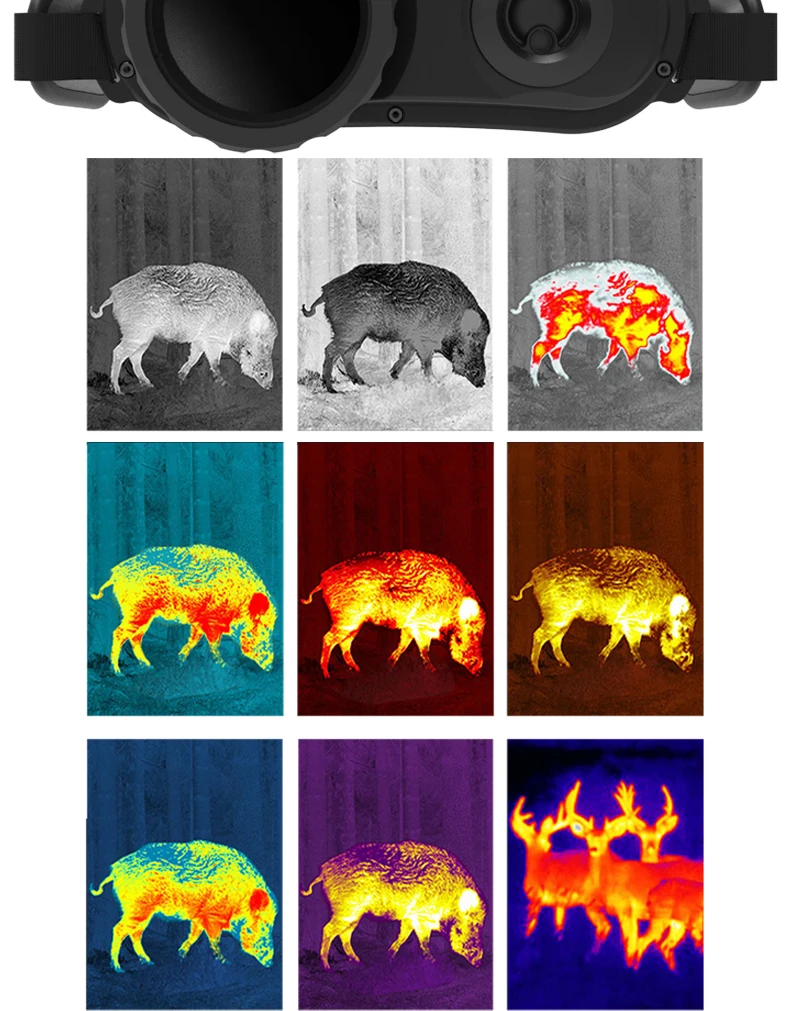

Fusion imaging mode：fusion white heat/fusion black heat/fusion lava/fusion molten metal/fusion red and blue/fusion amber/fusion fluorescent green/fusion rainbow/fusion rainbow enhancement
Corsshair：5 types of crosshair

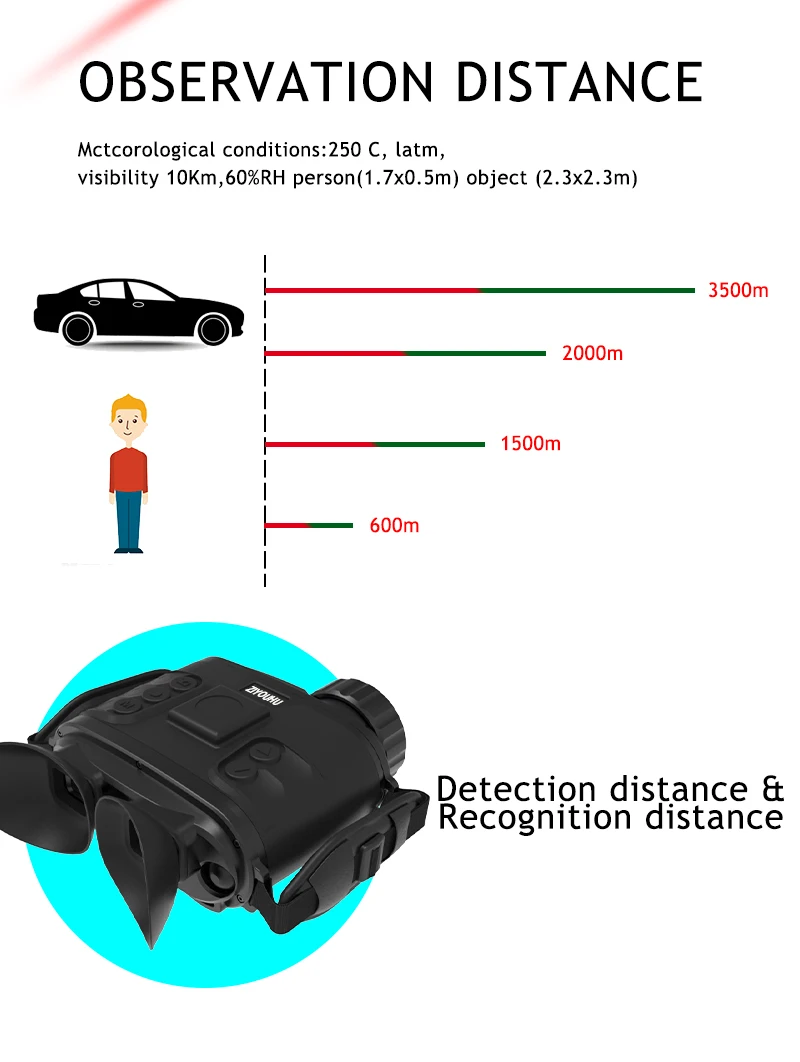

Detection range：2000m person (typical weather conditions) / 350m vehicle (typical weather conditions)
Identification distance：600m person (typical weather condition) / 1500m vehicle (typical weather condition)

▶ Parameters of the eyepiece
Display：0.39 inch OLED display, 1024×768 resolution
Exit pupil distance：35mm
Eyepiece magnification：15X

▶ Image storage
Video camera playback：supports one-click camera and video playback, and video and pictures can be played back on the machine.
Image resolution：1024×768
Storage capacity：64 GB (optional 128 GB /256 GB)

▶ System function
Impact recording：Supports automatic impact recording, which automatically prerecords and saves videos before and after impact. The duration and sensitivity of impact video can be adjusted.
Satellite positioning：beidou /GPS (optional) and can display latitude and longitude information within 10 seconds outdoors
The target locating：device can display the longitude and latitude of the target in real time

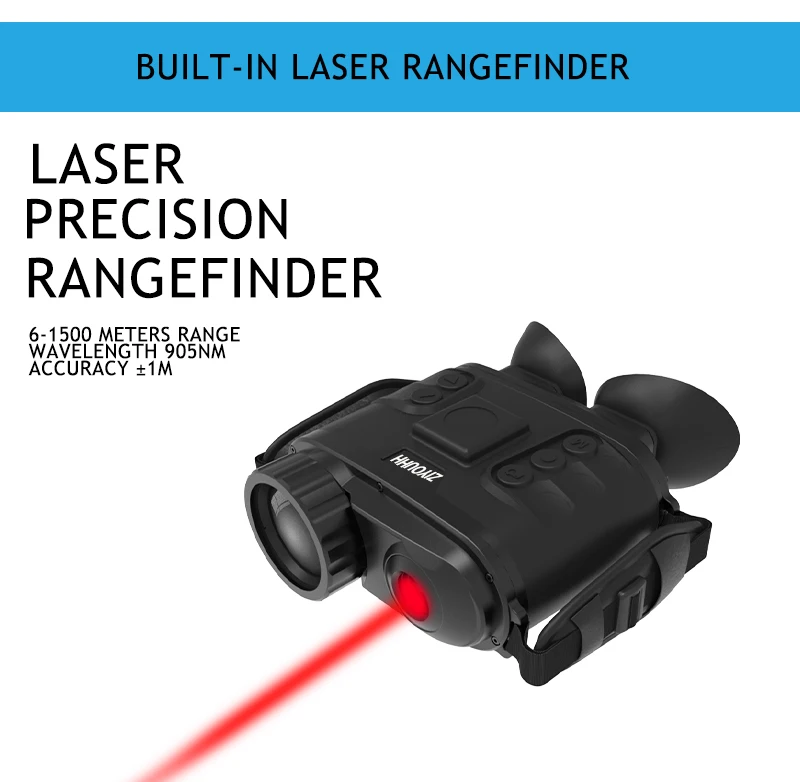

Laser ranging：6-1500 meters wavelength 905nm accuracy ±1m
Azimuth sensor：static accuracy 0.05° dynamic 0.1°
Acceleration sensor：2G-60g internal adjustable
Electronic compass：azimuth static accuracy 0.05° dynamic 0.1° Elevation static accuracy 0.05° dynamic 0.1°

▶ Laser ranging
The range：1000 meters
Ranging wavelength pulse：905nm
Ranging frequency：25-35khz adaptive
Laser divergence Angle：3mrad
Ranging accuracy：±1m

▶ Physical properties

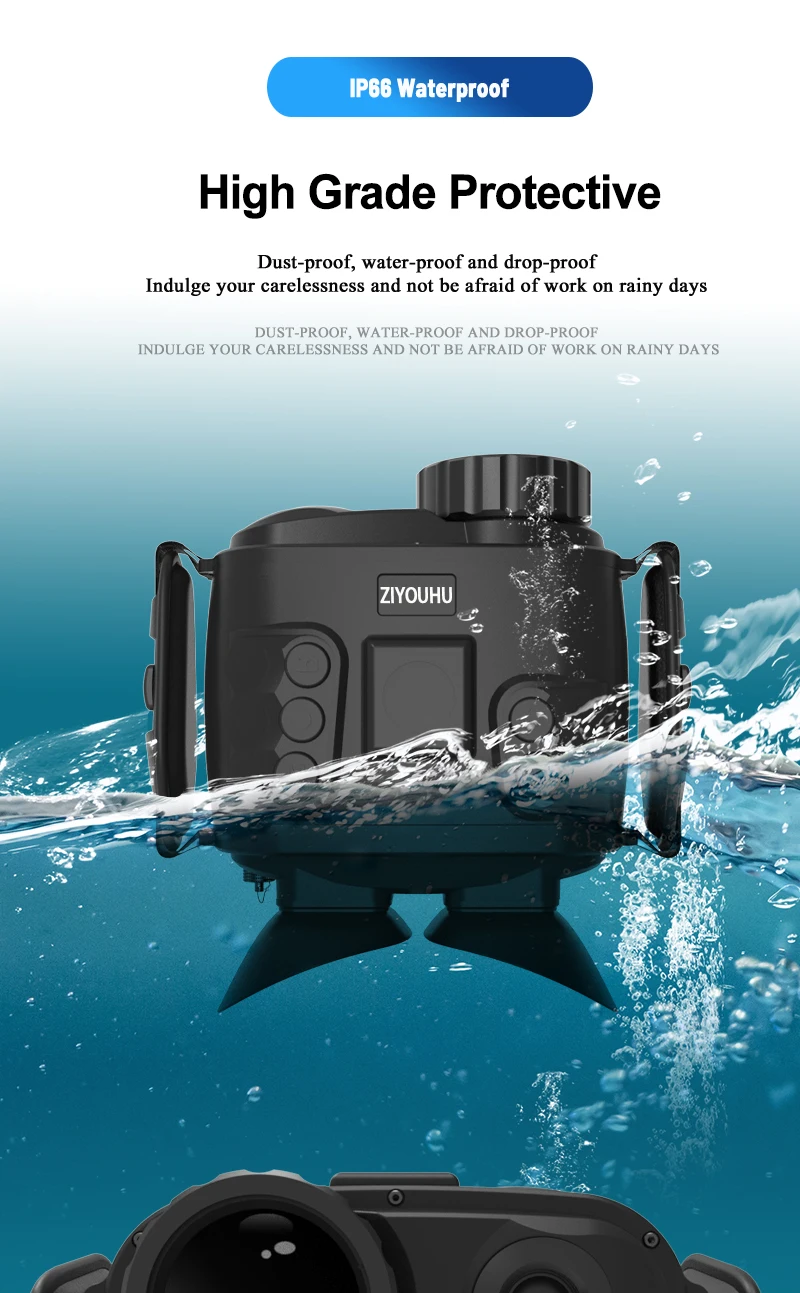

Waterproof seal：IP66 (airtight)
Operating temperature：-40℃ ~ +60℃
Storage temperature：-45℃ ~ +65℃
Input voltage：DC5V
Power：3w
Battery：18500*3 rechargeable lithium 3.7V @ 3500mAH
Working time：Continuous working time >15 hours
Product size：L214×W175×H75 (mm)
Product weight：≤1.2kg
